18650 Rechargeable Battery: Your Comprehensive Guide

The 18650 rechargeable battery stands as a versatile powerhouse in today’s tech landscape. Primarily renowned for its size, capacity, and robust performance, this lithium-ion cell has revolutionized portable power solutions. In this comprehensive guide, we delve deep into the nuances of the 18650 battery, uncovering its specifications, applications, care tips, and more, to empower users in making informed decisions and maximizing their battery efficiency.

Part 1. What is an 18650 rechargeable battery?

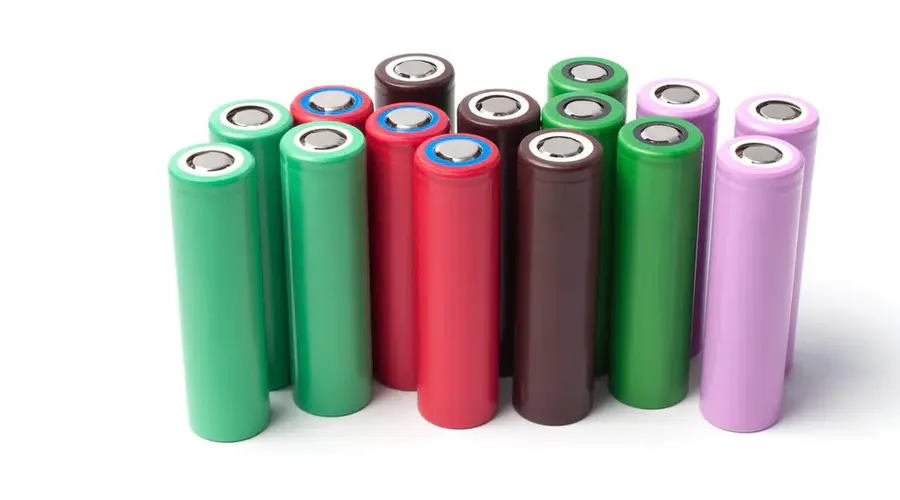

An 18650 rechargeable battery is a cylindrical lithium-ion cell characterized by its size: 18mm in diameter and 65mm in length. This rechargeable power source boasts a high energy density, allowing it to store substantial amounts of charge relative to its size. These batteries operate within a voltage range of approximately 3.6 to 3.7 volts, with varying capacities typically spanning from 1800mAh to 3500mAh. Renowned for their versatility, these cells serve as a ubiquitous power solution across a diverse array of portable electronic devices due to their rechargeable nature and robust performance capabilities.

Part 2. 18650 Battery specs

Dimensions:

Diameter: 18mm

Length: 65mm

Chemistry:

Lithium-ion (Li-ion)

Nominal voltage:

3.6 to 3.7 volts

Capacity range:

Typically between 1800mAh to 3500mAh

Energy density:

High energy density enabling efficient charge storage

Discharge rate:

Varies per model and brand

Higher discharge rates enable rapid power delivery

Chemical composition:

Lithium Cobalt Oxide (LiCoO2), Lithium Manganese Oxide (LiMn2O4), Lithium Iron Phosphate (LiFePO4), etc.

Cycle life:

Usually between 300 to 500 charge-discharge cycles

Operating temperatures:

Typically -20°C to 60°C (-4°F to 140°F)

Performance may vary at extreme temperatures

Charging voltage:

Standard charging voltage: 4.2 volts

Recommended cut-off charging voltage: 4.2 to 4.3 volts

Discharge cut-off voltage:

Typically between 2.5 to 3.0 volts for safety and battery longevity

Maximum continuous discharge current:

Varies between 5A to 30A depending on the battery model

Watt-hour (Wh) rating:

Calculated by multiplying the voltage by the ampere-hour (Ah) rating

Example: A 3.7V 2500mAh battery has a 9.25Wh rating (3.7V * 2.5Ah = 9.25Wh)

Charging method:

Requires compatible chargers designed for lithium-ion batteries

Some models feature built-in protection circuits for safe charging

Weight:

Generally ranges from 45 grams to 50 grams

Compatibility:

Varies based on the device’s voltage and capacity requirements

Essential to match battery specs with device specifications for optimal performance and safety.

Part 3. 18650 Rechargeable battery advantages and disadvantages

18650 Rechargeable battery advantages

Voltage Stability: 18650 batteries maintain a relatively stable voltage throughout discharge cycles, ensuring consistent power supply to devices, even under varying loads.

Low Internal Resistance: These batteries exhibit low internal resistance, enabling efficient energy transfer and reduced heat generation, making them suitable for high-drain devices.

High Energy Density: With a high energy-to-weight ratio, 18650 batteries offer substantial energy storage capacity relative to their size, ideal for compact devices requiring long-lasting power.

Rechargeability and Low Memory Effect: These batteries have minimal memory effect, allowing them to be recharged frequently without needing a full discharge, maintaining performance and capacity.

Durability and Longevity: 18650 batteries are designed for hundreds of charge cycles, offering extended lifespan and reliability for long-term usage.

18650 Rechargeable battery disadvantages

Safety Concerns and Thermal Runaway: Mishandling or overcharging can cause thermal runaway, leading to increased temperatures, leakage, or rupture, posing safety hazards.

Performance Degradation Over Cycles: Despite durability, repeated charge-discharge cycles lead to gradual capacity loss and decreased voltage output, affecting overall performance.

Complex Charging Requirements: Charging requires precise voltage and current control;   improper charging methods or using incompatible chargers can damage the battery or reduce its lifespan.

Part 4. 18650 Battery uses

Laptops, tablets, and power banks

These batteries are well-suited for portable computing devices due to their high energy density and compact size. They efficiently power laptops and tablets while serving as rechargeable energy sources in power banks for on-the-go charging.

Flashlights and torches

Known for their consistent power output, 18650 batteries are ideal for powering high-performance flashlights and torches. Their ability to maintain a stable voltage throughout discharge ensures prolonged and reliable illumination.

Power tools

18650 batteries, with their low internal resistance and ability to deliver high currents, are commonly used in cordless power tools. Their efficiency and longevity make them suitable for demanding tasks in construction and DIY projects.

Vaping devices and portable fans

These batteries find use in vape mods and e-cigarettes, providing a consistent and rechargeable power source. They also power portable fans efficiently due to their high energy density and rechargeable nature.

Medical devices

In portable medical devices and hearing aids, the compact size and reliability of 18650 batteries make them suitable for powering essential healthcare equipment with consistent performance.

Electric vehicles (EVs) and e-bikes

Integrated into battery packs for electric cars, scooters, and bicycles, 18650 batteries offer high energy density and rechargeability, making them essential for efficient and sustainable mobility solutions.

UPS and solar energy storage

These batteries serve as reliable backup power sources in UPS systems and efficiently store solar energy due to their ability to withstand numerous charge-discharge cycles.

Robotics, drones, and custom power banks

Their compact size and consistent power output make 18650 batteries suitable for DIY robotics, drone projects, and custom power banks, catering to diverse hobbyist and experimental needs.

Part 5. 18650 Rechargeable battery care tips

Proper charging habits

Use compatible chargers: Always employ chargers specifically designed for 18650 batteries to prevent overcharging or damaging the cells.

Avoid overcharging: Once fully charged, promptly remove batteries from the charger to prevent overcharging, which can degrade battery health.

Monitor charging: Regularly check on batteries while charging to ensure they aren’t overheating, as excessive heat can compromise their lifespan.

Storage guidelines

Ideal conditions: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Aim for temperatures between 20°C to 25°C (68°F to 77°F) for optimal storage.

Avoid heat and moisture: Prevent exposing batteries to extreme temperatures, moisture, or fire, as these conditions can damage the battery or lead to safety hazards.

Avoid prolonged inactivity: If storing batteries for an extended period, ensure they have a partial charge (around 50%) to prevent complete discharge.

Usage

Regular usage: Regularly use and recharge batteries to prevent complete discharge, which can lead to capacity loss.

Match batteries: When using multiple batteries in a device, ensure they have similar capacities, ages, and charge levels to prevent uneven discharging.

Handling and safety

Avoid physical damage: Protect batteries from physical damage, including dents or punctures, as these can compromise their integrity and safety.

Safety circuits: Consider using batteries with built-in protection circuits to prevent overcharging, over-discharging, and short circuits for added safety.

Inspection and maintenance

Regular inspection: Periodically check batteries for signs of damage, leakage, or swelling. Dispose of damaged batteries safely.

Clean terminals: Use a dry cloth to clean battery terminals to ensure good contact and prevent buildup that might affect performance.
