3.7V 20mAh 곡선형 배터리 150732

모델: 105732 SKU: UFX0947-13-1

유파인은 3.7V 20mAh 특수 형상의 리튬 배터리 생산을 전문으로 하는 선도적인 폴리머 리튬 이온 배터리 셀 제조업체입니다.

-40℃에서도 안정적으로 작동하므로 혹독한 환경에 적합합니다.
A stable 3.7 V output ensures consistent power delivery for various electronics.
Extended cycle life maximizes usage, ensuring cost efficiency.
Built-in protections against overcharging, over-discharging, and short circuits for secure performance.
Tailored for diverse device needs with customizable capacities and sizes.

견적문의 제품 데이터시트 다운로드

3.7V Ultra Thin Battery 20mAh UFX0447-14 01

3.7V Ultra Thin Battery 20mAh UFX0447-14 02

3.7V Ultra Thin Battery 20mAh UFX0447-14 06

3.7V Ultra Thin Battery 20mAh UFX0447-14 05

3.7V Ultra Thin Battery 20mAh UFX0447-14 04

3.7V Ultra Thin Battery 20mAh UFX0447-14 03

16년 경력
200+ 인증
1000+ 고객
7X24 고객 지원

제품 세부 정보
사양
내용
FAQs

제품 세부 정보

배출률
긴 사이클 수명
초저 자기방전
넓은 온도 범위

Lithium batteries exhibit varying discharge rates. Ufine's batteries support a maximum discharge rate of 5.0C,delivering high power output in short durations.

Ufine's lithium battery maintains over 80% capacity after 500 cycles at room temperature,utilizing 0.5C charge and discharge conditions.

Batteries exhibit differential self-discharge rates at 100% and 70% charge states.
Self-discharge is higher at 100% state of charge (SOC) compared to 70% SOC.

Lithium batteries operate within the -20°C to 60°C discharge temperature range.
Ufine's custom low-temperature batteries can be used for -40°C to 55°C operation, catering to diverse outdoor scenarios.

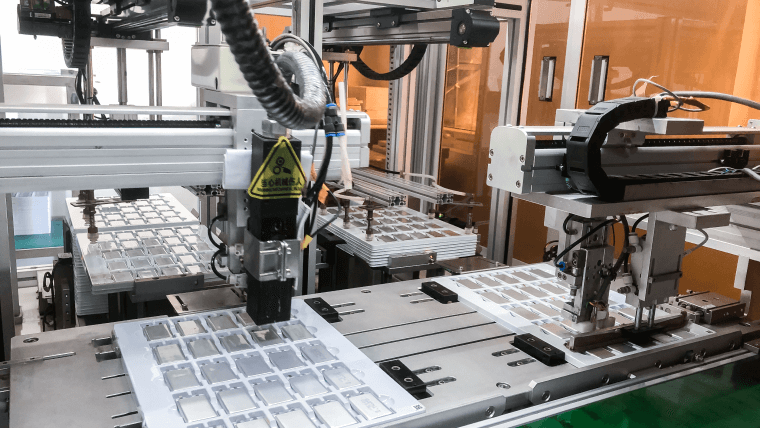

Thorough Capacity Testing

Each Ultra-Thin Battery undergoes meticulous capacity testing before shipment, validating normal parameters encompassing voltage, current, charging, and discharging data for consistent performance.

Environmental Consciousness

Utilizes premium A-grade battery cells, ensuring leak-proof and environmentally friendly operations, aligning with sustainable practices.

Applications

Ufine's curved batteries are not just curved batteries, but can also be customized with batteries of various shapes for your special equipment, such as fan-shaped batteries, polygonal batteries, etc.

Smart Ring

배터리 사양

1. 기계적 특성

Cell	150732	PCM	No
NTC	No	Weight	appr. 0.52g
Configuration	1S1P

2. 전기 사양

Capacity	20mAh	Nominal Voltage	3.7V
Energy	0.074Wh	Internal Resistance	less than 1000mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	20mA	Max. Discharge Current	20mA
Standard Charge Current	10mA	Standard Discharge Current	10mA
Charging Temperature	0℃ to 45℃	Discharging Temperature	-20℃ to 60℃
Storage Temp.Range	1 year at -20℃ to +30℃ 3 mos. at -20℃ to +45℃ 1 mo. at -20℃ to +60℃	Cycle life	100 cycles ≥92% 300 cycles ≥88% 500 cycles ≥80%

3. 세포 보호

Overcharge Detection	No	Overdischarge Detection	No
Overcurrent Detection	No	Short protection	No

제품 데이터시트 다운로드

3.7V 20mAh 곡면 폴리머 배터리 이해하기

첨단 전자 기기의 개발은 배터리 기술의 혁신을 요구했습니다. 이러한 혁신 중 하나는 작고 유연하며 휴대하기 편리한 기기의 전력 수요를 충족하도록 설계된 3.7V 20mAh 곡면 폴리머 배터리입니다.

1부. 3.7V 20mAh 곡면 폴리머 배터리의 주요 특징

전압: 3.7볼트로 많은 소형 전자기기에 충분한 전력을 제공합니다.

용량: 20mAh, 저전력 애플리케이션에 적합합니다.

곡선 디자인: 유연하고 곡선형 구조로 기존과 다른 공간에도 잘 어울리며, 다양한 기기의 디자인 가능성을 높여줍니다.

Part 2. 3.7 V 20mAh Curved Polymer Battery Advantages

Flexibility: The curved design can conform to different shapes, making it ideal for wearable and compact devices.

Lightweight: The small capacity and size contribute to the battery’s lightweight nature, which is essential for portable electronics.

Safety: Polymer batteries are generally safer than traditional lithium-ion batteries, reducing the risk of leaks or explosions.

Part 3. 3.7 V 20mAh Curved Polymer Battery Application

Smart Rings and Bracelets

Fitness Trackers

Smart Clothing

Wearable Health Monitors

Hearing Aids

Smart Home Sensors

Wearable IoT Devices

Miniature Remote Controls

Part 4. Maintenance and Longevity

To extend battery life, adhere to recommended usage practices. Avoid complete discharges, which strain the battery, and opt for partial charges instead. Regularly update device firmware or software to ensure optimized battery performance. Keeping batteries at around 50% charge during long-term storage prevents degradation.

Part 5. Buying Guide and Recommendations

For reliable and customized solutions, consider sourcing your lithium-ion batteries from Ufine custom battery. Our commitment to quality assurance and tailored battery solutions ensures dependable performance for your specific needs.

자주 묻는 질문

D형 LiPo 배터리를 더 높은 용량으로 맞춤 제작할 수 있나요?

네! Ufine Battery는 귀사 기기의 고유한 에너지 요구 사항에 맞춰 소형 원형 및 원형 배터리를 맞춤 제작하는 전문 업체입니다. 더 높은 용량이 필요한 경우, D형 배터리를 확장하여 더 긴 사용 시간 또는 더 높은 에너지 출력을 제공하여 기기의 최적 성능을 보장합니다.
Can I use a round battery in devices with unique shapes or designs?

Yes, if your device requires a round battery but has a unique design, Ufine Battery can offer special shape batteries that retain the core benefits of a small round battery while being customized to fit the device’s form factor. This allows you to integrate the energy efficiency of small round batteries into devices with non-circular spaces.
How do I know if a small round battery is the right choice for my device?

When choosing between different battery types, if your device requires a compact power source and space is limited, a small round battery like the 503533 D-shaped LiPo could be the ideal solution. It provides high energy density and long-lasting power in a tiny form, perfect for a variety of wearable devices and portable gadgets that need a small battery round to fit snugly into their design.
Can a special shape battery improve the performance of my device?

Yes, special shape batteries, like the D-shaped LiPo battery, can enhance the performance of your device by allowing for a more efficient battery placement within the product. Unlike traditional round batteries, special shape batteries offer design flexibility that maximizes space, improving overall device performance and extending battery life.
Can Ufine Battery create custom connectors for my small round battery?

Yes, Ufine Battery can customize connectors for small round batteries and special shape batteries to ensure seamless integration into your device. Whether you need a round battery connector for ease of assembly or a specific configuration for non-standard designs, we can provide tailored solutions to meet your device's power needs.
